    Home Products Monitor desk mounts

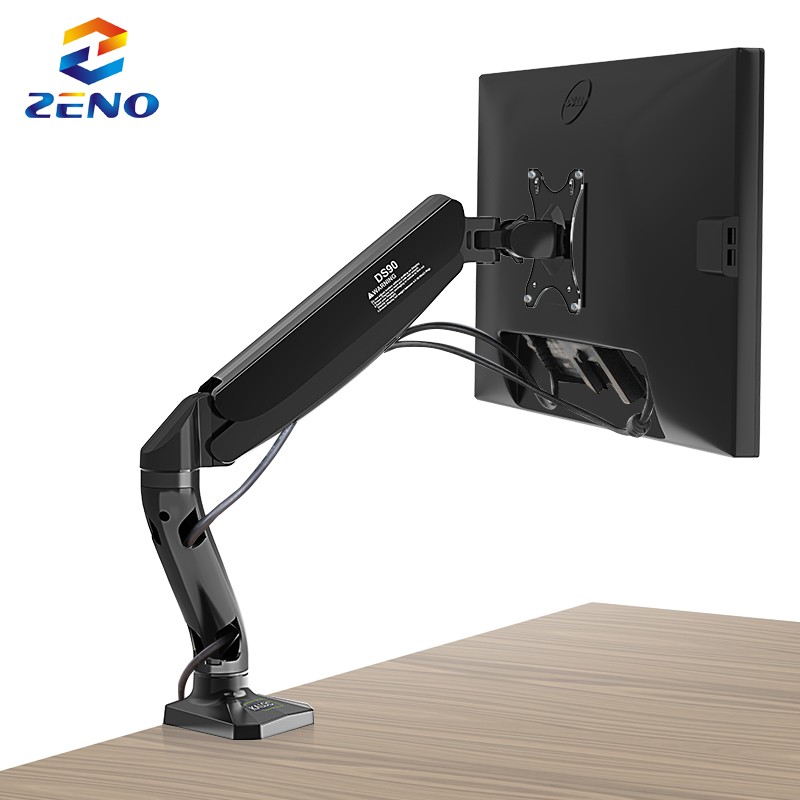

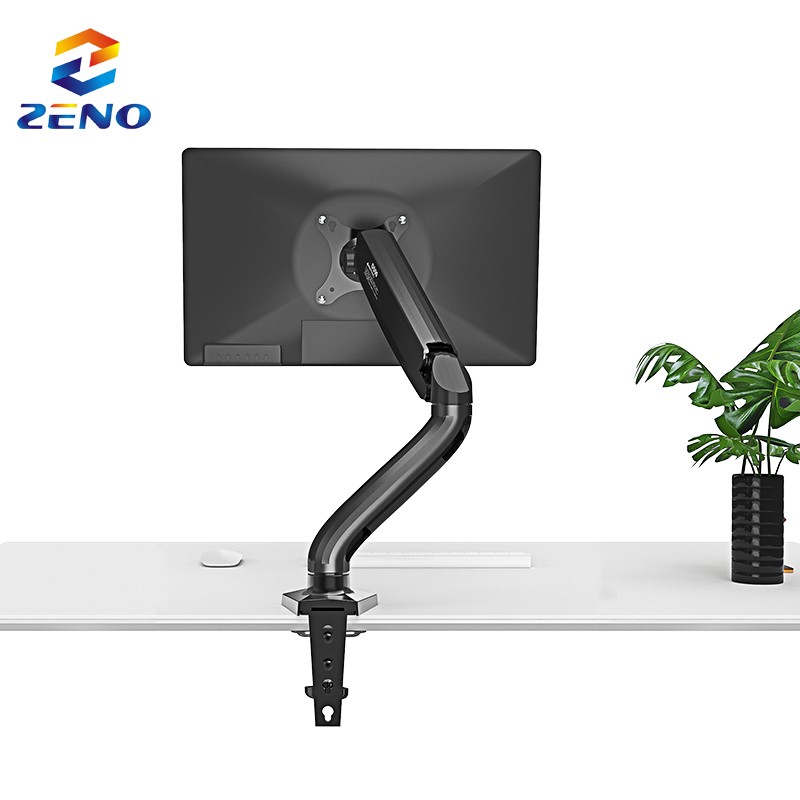

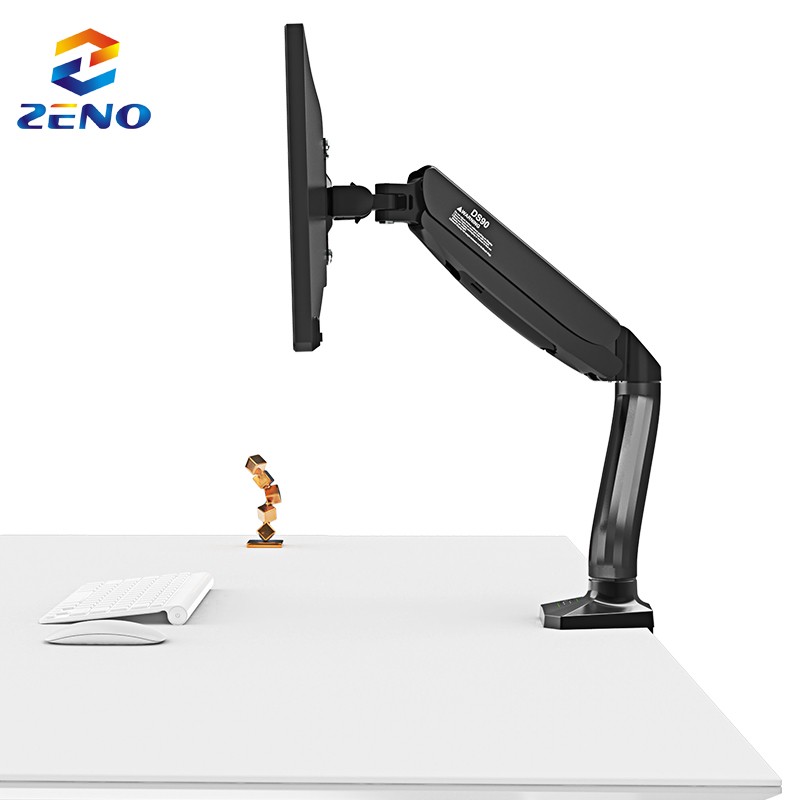

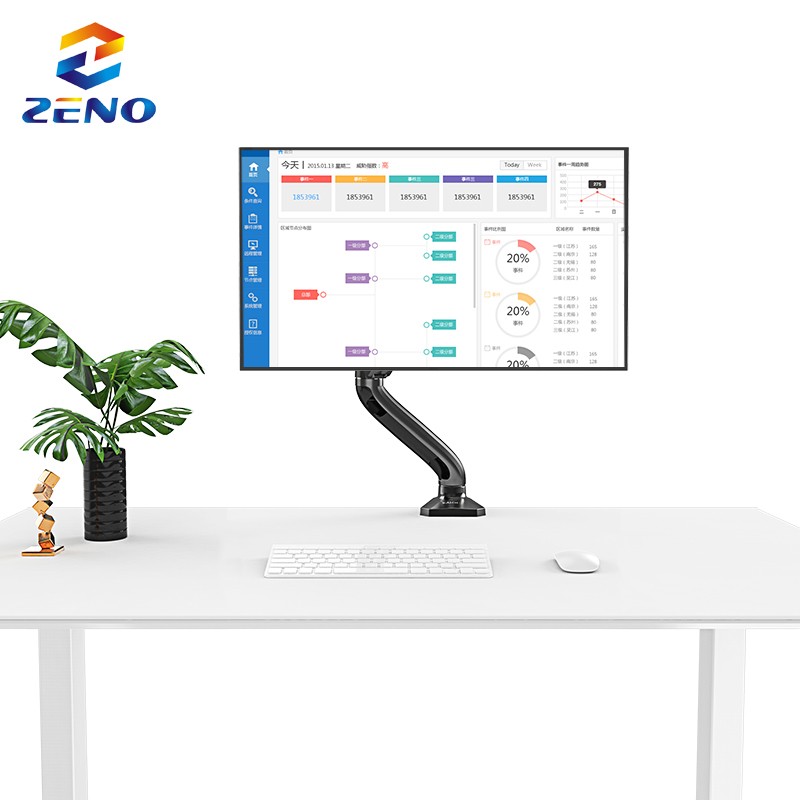

  1. Monitor desk mounts DS90
  • Monitor desk mounts DS90
  • Monitor desk mounts DS90
  • Monitor desk mounts DS90
  • Monitor desk mounts DS90
Monitor desk mounts DS90 Monitor desk mounts DS90 Monitor desk mounts DS90 Monitor desk mounts DS90

Monitor desk mounts DS90

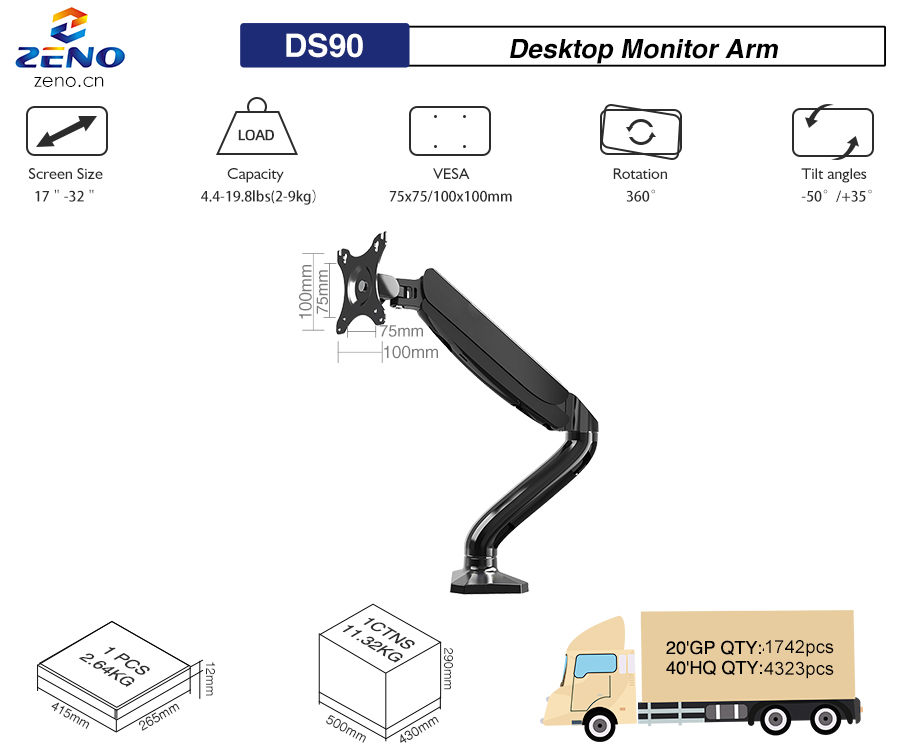

  • Product Item:DS90
  • ◈ VESA: 75*75/100*100mm
  • ◈ Fits: 17''-32''
  • ◈ Tilt: -50°/+35°
  • ◈ Swivel: 360°
  • ◈ Load Capacity: 2-9kgs/4.4-19.8Ibs
  • desk monitor arm  , desk mount monitor arm  , single monitor arm  , clamp monitor arm
    Inquiry Send Email

    Description

    STYLE: DS90
    Fits: 17 - 32 inches
    Tilt: -50°/+35°
    Load Capacity: 2-9kg/4.4-19.8lbs
    Inner Box:

    41.5*26.5*12cm

    pcs / carton 4
    Outer Box: 50*43*29cm

    The DS90 is a modern, light-weight yet durable desk monitor arm which built with latest technology that capable to hold up to 9kg/19.8lbs of monitor panel. The sophisticated black color is easily blend into vast variety of working environment or interior furniture. It is available with multiple arm movement such as moves up, down, stretch forward and backward which comes at ease for the most ergonomic setup. Users able to access hassle free of 360° monitor rotation, -50°~ +35° tilt angle, 180° swivel and vertically height adjustments. All cables could be aligned along the compartment for tidy and safety reason.

    #desk mount monitor arm #single monitor arm #clamp monitor arm

    PRODUCT HIGHLIGHTS:

    - Gas-strut arm make counterbalance setup at ease
    - Multiple movement for maximum ergonomic setup
    - Compartment for cable management
    - Both grommet and desk clamp mounting are available
    - Support monitors’ weight from 2-9kg

    Specifications:

    Type: Desk Mount
    Material: Aluminum, Metal, Plastic
    Recommended Screen Size: 17” – 32”
    Loading Weight Capacity: 2-9 kg
    VESA Standard (mm): 75x75, 100x100
    Tilt: -50°~+35°
    Swivel: -90°~+90°
    Rotate: 360°
    Arm Extend: Max. 542 mm
    Height: Max. 420 mm
    Clamp Thickness: 15-95 mm
    Clamp Clearance: Min. 60 mm
    Grommet/ Hole Mount Diameter: 10~50 mm
    Height Adjustable: Yes
    Cable Management: Yes
    Product Dimension: 105x420x542 mm
    Weight: Approx. 2.7kgs

    Package includes:
    1 x Kaloc DS90 monitor desk mount, with screws & fittings
