KLC-K4

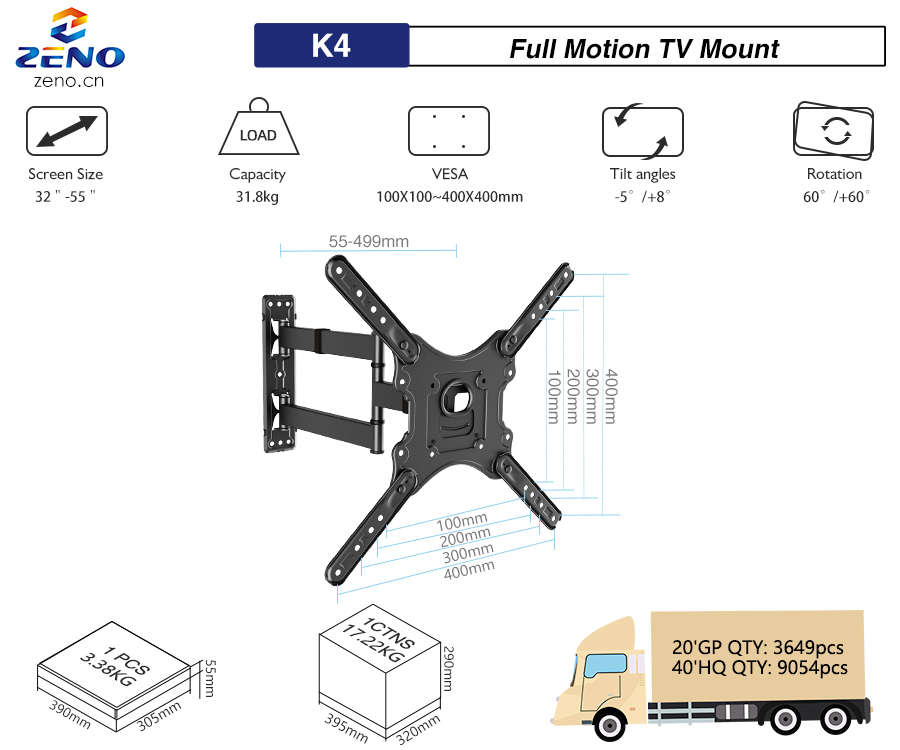

◈ VESA: 100x100~400x400mm: ◈ Load Capacity: 31.8kg/70lbs
◈ Fits: 32 to 55 inches: ◈ Distance to wall: 55-499mm
◈ Tilt: -5°/+8°:
◈ Swivel: 60°/+60°:
◈ Rotation: ±3°:
Product Description
STYLE
KALOC K4
VESA
100x100~400x400mm
Fits
32 to 55 inches
Tilt
-5°/+8°
Swivel
60°/+60°
Rotation
±3°
Load Capacity
31.8kg/70lbs
Distance to wall
55-499mm
Descriptions:
* Fits most 32 to 55 inches screen flat panel TV. (Note: Supported screen size is provided as a reference only)
* Free hanging and stop and any up/down Tilt Angle between -5°/+8°.
* Left-Right Swivel between 60 and +60 degrees.
* Heavy duty construction.
* With this tv mounting brackets, you can be easy to fix, tilt, extend, fold and rotate your TV and any viewing angle whatever you wanted.
* Our standard Accessories enable you to extend free VESA mounting distance from 100x100mm to 400x400mm.
* The wall plate cover and cable hidden system looked more luxury and nice, also made the TV cable behind your TV neatly.
* Standard installation hardware screws included.
Specifications:
Brand: KALOC
Model: K4
Color: Black
Fits: most 32 to 55 inches Flat Panel Display
VESA Compliance: 100x100~400x400mm
Load Capacity: 31.8kg/70lbs
Tilt: -5°/+8°
Left & Right Swivel: 60°/+60°

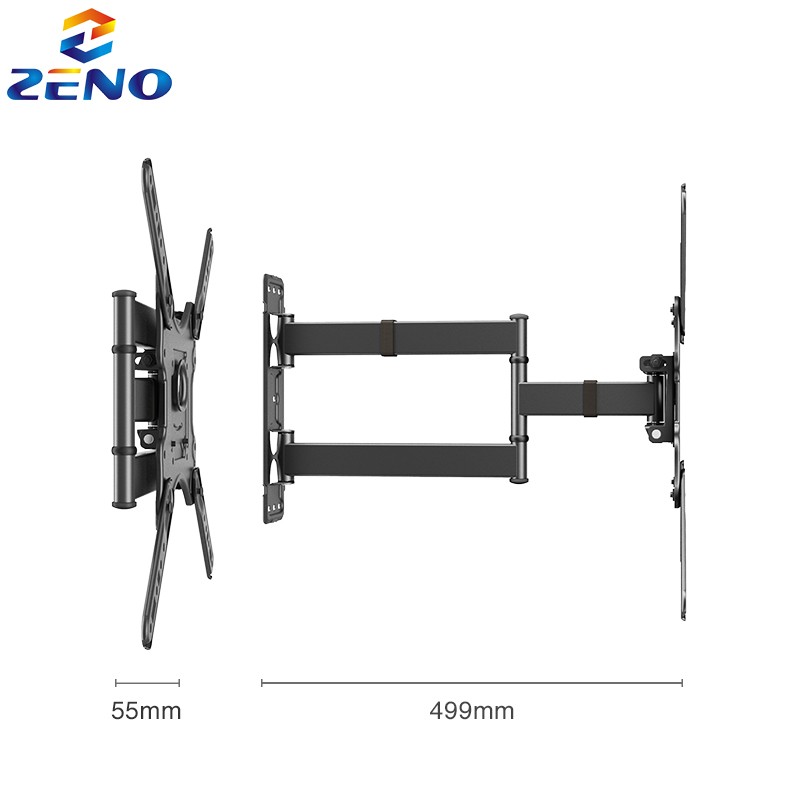

Arm Extension: 55-499mm
Material: SPCC, Seamless Steel Tube and Plastic.
VESA: When we refer to VESA sizes we are referring to the standard used to measure the hole pattern on the back of your Display. If you do know your VESA pattern you can simply measure the distance side to side and top to bottom on your display. The distance in millimeters is the Vesa Hole Pattern.
Package Includes:
1 x Swivel TV Wall Mount
1 x Some Installing Accessories
